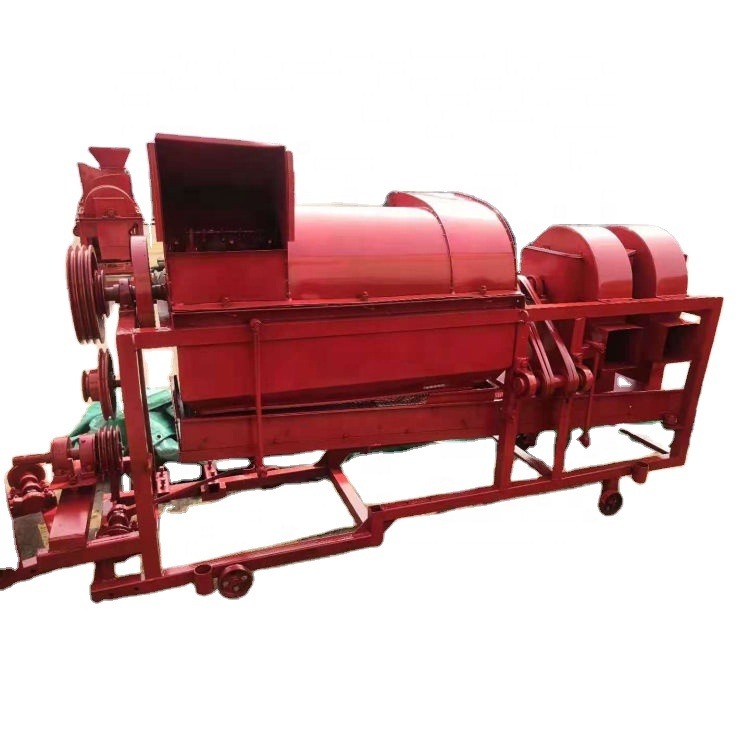

Hot Selling Multifunctional Farms Maize Wheat Rice Thresher Machine For Factory

general introduction Please read the manual carefully before using this machine! 5T-1000 multi-functional thresher is suitable for threshing and sorting of corn, millet, sorghum, castor seeds, millet and other basically straw-free grains; it can also be used for threshing of crops with long straws such as rape and soybeans, because the straw is long thus efficient Lower. Structure This machine is composed of frame welded parts, roller, sieve, cover, feeding plate, belt pulley, discharge port, air drum assembly, screen mesh adapted to different grains, etc. working principle This machine is designed according to the working principle of hammer-throwing corn thresher and spike-tooth cereal thresher. Manual or automatic feeding will feed the crops evenly and continuously from the feeding table. The crops are rubbed between the nail teeth (or hammer) and the sieve, the seeds fall off, and then fall through the sieve hole to the surface of the vibrating screen, and pass the vibrating screen The vibration and the air flow of the centrifugal fan separate the grain from the impurities. The grain flows out of the grain outlet of the vibrating screen, and the bran and other impurities with lighter specific gravity are sucked and discharged by the suction fan, making the threshing operation easier and better. Machine adjustment 1.5T-1000 multi-functional thresher, when threshing corn, first mark the 4 stabilizing rods with nail teeth, remove it, put it aside and close it. Let the threshing hammer of threshed corn rotate freely on the skewer 2.Then install the sieve plate with φ16mm sieve hole, cover the machine cover and fasten it. Then will be ok 3.When threshing sorghum, sorghum, and soybeans, first remove the 4 string shafts with the hammer together with the hammer, install them in boxes or iron in four portions, put them aside, and put them away. To avoid loss of confusion; 4.Then install the threshing stabilizer bar with nail teeth according to the mark, and fix it firmly with bolts; pay attention that the nail stabilization bar should not be mixed and reversed. 5.Then replace the sieve plate with an aperture of Φ10mm for threshing beans. The sieve plate of Φ5mm is used for millet, sorghum and rape.
