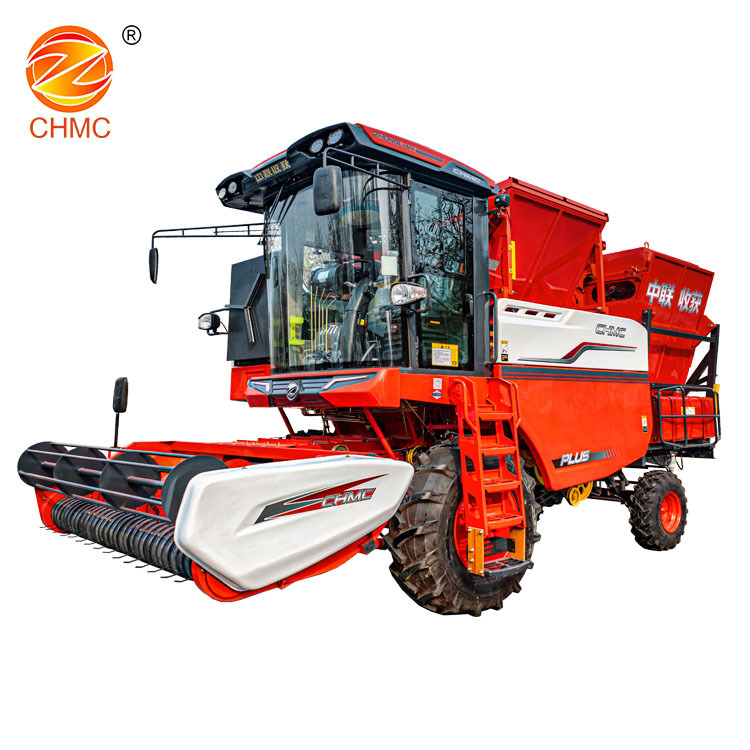

Agriculture groundnut picking machine walking tractor peanut harvester to harvester peanut
Product Introduction:
v Applications
After drying, the moisture content of the stems is less than 15%, and the ratio of vines and fruits is 0.5 to 1.5 for dry picking. ); The moisture content of stem vines is greater than 40%, and the ratio of vine fruit to 0.8-2.0 is harvested by wet picking; the length and working speed of vines should meet the requirements of the product instruction. Its operation quality index shall meet the requirements of Table 1.
Table 1 Working index
|
Item |
Article |
Index |
|
l |
Total loss rate:% |
≤3.5 |
|
2 |
Breakage rate:% |
≤2.0 |
|
3 |
Impurity rate:% |
≤5.0 |
|
4 |
Vine recovery rate:% |
≥93 |
|
5 |
Pure productivity:(hm2/h) |
0.27~0.54 |
|
6 |
Validity:% |
≥98 |
Technical Parameters:
|
l Model: 4HJL-2.5 Peanut Harvester l Power: 150HP l Engine Type: Diesel, direct injection, in-line, water-cooled, turbocharged, four-stroke, high-pressure common rail engine. l Engine Brand: Changchai Brand l Feeding Amount: 6Kgs/second l Bridge Width: 900mm l Working Width: 2500mm l Rows space: 50/60/70/90/120/140 mm l Fruit box volume: 2.35m³ l Straw box volume: 5.3m³ l Oil consumption:22.5 Kgs/hectare ( 27L ) l Threshing technology: Longitudinal axial flow drum type l Dimension: 6725*2790*3420mm l Net Weight: 5250Kgs l Driving way: 2 wheel drive |
