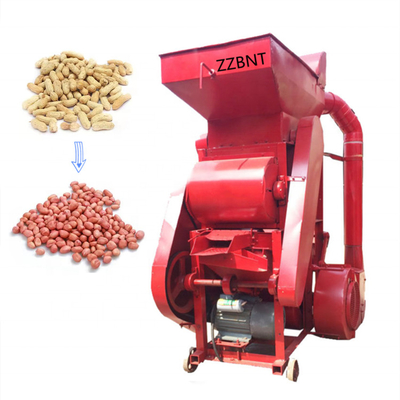

Small Home Use Groundnut Peeler
Small Home Use Groundnut Peeler
Small Home Use Groundnut Peeler
Small Home Use Groundnut Peeler
Small Home Use Groundnut Peeler
Product Information:
Peanut peeling machine is a kind of mechanical equipment used for peeling peanuts. The machine is well-designed, and the feeding can complete the peanut shelling, separation, secondary redistribution, cleaning and kernel sorting; after wind primary selection, fan vibrating screen specific gravity, stratification separation, redistribution, cleaning and sorting Peanut kernels, this machine adopts tube shelling, sharp primary separation of specific gravity, and the peanut kernels can be directly put into sack, which has the characteristics of low cost, high shelling efficiency, and labor saving. Peanut shelling machine is a machine that removes the shell of peanuts and keeps the peanuts intact through the rotating body.
Working Principle:
The peanut shelling machine is composed of a frame, a fan, a rotor, a single-phase motor, a screen (in two sizes), a hopper, a vibrating screen, a V-belt wheel and its driving V-belt. After the machine is running normally, the peanuts are put into the hopper quantitatively, evenly and continuously, and the peanut shells are broken under the repeated blow, friction and collision of the rotor. Peanut kernels and broken peanut shells pass through the sieve of the aperture under the rotating wind pressure and impact of the rotor (a large-hole sieve is used for the secondary threshing of peanuts, and the small rind after cleaning is replaced with a small-hole sieve for shelling again) At this time, the peanut shells and grains are blown by the rotating fan, and the light-weight peanut shells are blown out of the body, and the peanut grains are screened by the vibrating screen to achieve the purpose of cleaning.
Product Details:
| Applicable Voltage | 220v/380v |
| Motor Power | 2.2-3kw |
| Stand-alone Weight | 35kg+23kg |
| Hourly Output | Peanut fruit 200kg |
| Machine Size | 60*55*110cm |
| Applications | Oil mill, farm |
Features of peanut seed sheller equipment:
1. The peeling and rotating adopts the principle of iron roller rotating dry peeling and electric sieve grading and seed selection.
2. The damage rate of shelled seeds is extremely low, and the shell is made of iron plate powder spraying process, which is beautiful and durable.
3. The specially designed blower has moderate wind and even wind distribution, which can effectively separate the seeds and shells and optimize the recovery rate of seeds.
4. The shelling machine is equipped with high-quality universal wheels and adopts a unique side-mounted design, which is convenient to move.
5. Small size, high efficiency and convenience. The peeling rate can reach 800-900 jin (peanuts) per hour, and the peeling rate is over 98%.
6. Each machine is equipped with two grate, which can be used for peeling peanuts of different sizes.
Precautions for the use of peanut seed sheller:
1. Please place the peeler in a spacious and flat area for operation.
2. According to the different sizes of shelled peanuts, select a matching screen for peeling.
3. When the machine is running, please do not reach into the mechanical running parts such as the motor, the blower, the inner side of the guard, and the deep part of the feed inlet to avoid injury.
4. The width of the feed opening is generally adjusted to about 3.5 cm (appropriate adjustment can be made according to the size of the peanut variety), and the peanut needs to be fed uniformly when peeling the shell.
5. When assembling the vibrating screen, tighten the rod nut at the bottom of the vibrating screen, and generally leave the tail of the rod 2 cm in length.
6. If the shelled peanuts are too dry, the breakage rate will increase accordingly. At this time, the peanut shells can be evenly wetted with clean water and placed for a few hours before peeling the shells to achieve the desired effect.
